<h2>（2） ETO&nbsp;<a title="eto sterilizer" href="https://www.hzbocon.com/products/industry-eto-sterilizer">Sterilizer：</a></h2>
<h3>1 sterilizer chamber</h3>

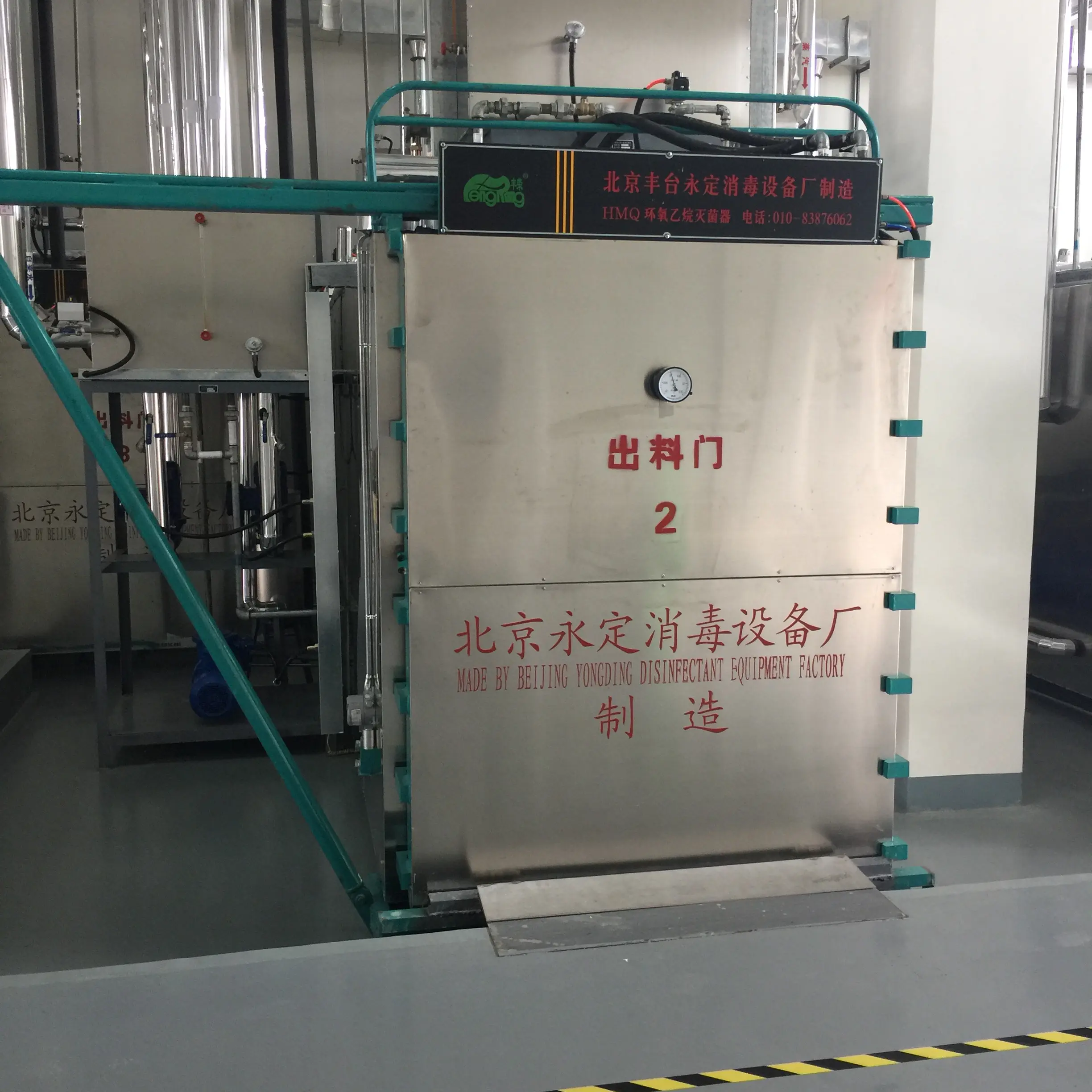

<p><img style="display: block; margin-left: auto; margin-right: auto;" src="https://first-fish.oss-us-west-1.aliyuncs.com/file/2/img_3203.webp" alt="eto sterilizer main part" width="800"></p>
<h4>1.1 Chamber structure:</h4>
<p>the main body of the chamber is welded by the inner pot, door frame, heating water jacket, covered by a heat preservation layer, and outer plate.&nbsp;</p>
<h4>1.2 Heating mode:</h4>
<p>use the method of hexahedron heating and combine the grouping and adjustable way to guarantee the heating rate and temperature.&nbsp;</p>
<h4>1.3 Components, pipes, and accessories:</h4>
<p>All pipes, which would contact ethylene oxide gas, are made of stainless steel 304; and all of the sealing gaskets and seals, which would contact EO gas, are made of polytetrafluoroethylene or silicone rubber.</p>
<h4>1.4 Sealing door：</h4>
<p>The doors of the sterilizer are pneumatic sliding; the door seal is made of silicone rubber; nitrogen filling, with a non-return valve during power off avoiding gas leaking; no need to brush oil; no need to vacuum when opening the door and it also has the pressure test function. &nbsp;&nbsp;</p>
<p>Door type（ optional） Door with a variety of structure sealing forms:&nbsp;</p>
<p>1)-M: mechanical door(old model, out of use);&nbsp;</p>
<p>2)- A: pneumatic sliding door；&nbsp;</p>
<p>3)- R: pneumatic revolving door &nbsp;</p>
<p>4)-L: Lifting door.</p>
<h4>1.5 sterilizer chamber size：&nbsp;</h4>
<p>Our sterilizer common volumes:&nbsp;</p>
<p>(1) &nbsp;78L, 150L, 230L for hospital and lab. &nbsp;</p>
<p>(2) 1m3, 2m3, 3m3, 5m3, 8m3, 11m3, 15m3, 20m3, 26m3, 35m3, 40m3, 50m3, 60m3 ,75m3, 90m3 ,100m3 and</p>
<p>120m3, for medical product manufacturers or sterilization stations. Please note, that any size can be customized.&nbsp;</p>
<h2>2 Sterilizer &mdash;&mdash;heating system&nbsp;</h2>
<p>The heating system is heated by the central heating system</p>
<h3>2.1 The heating water tank：</h3>
<p>&nbsp;The water tank is installed on the wall of the sterilizing cabinet and with the steel frame connected. Electric heating, circulation pump, temperature sensor, automatic water supplement, and each water interface are integrated.</p>
<h3>2.2 The parameters of the heating system. &nbsp;</h3>
<p>&nbsp; &nbsp; Please see the separate heating system. &nbsp;&nbsp;</p>
<h3>2.3 heating circulating system&nbsp;</h3>
<p>Circulating pump： The sterilizer is heated by the hot water from the water tank through the filter. Running the hot water in the water to tank continuously to control the temperature of the sterilizer, and control the water temperature in the tank to control the sterilizer temperature.&nbsp;</p>
<h2>3 Sterilizer--vacuum system&nbsp;</h2>
<p>The vacuum system pre-vacuum removes and cleans the EO gas in the sterilizer. The discharge port connects to the steam water separator, and waste gas treatment equipment. &nbsp;</p>
<p>a) The vacuum pump adopts a single-pole vacuum pump, and the USES step method to adjust the vacuum rate.</p>
<p>b) Vacuum device: pneumatic ball valve, check valve. Prevent negative pressure backwater, prevent power failure backwater function.&nbsp;</p>
<p>&nbsp;</p>
<p>Vacuum brand: BE: Yanfeng; LE: Yanfeng: GE: SIHI&nbsp;</p>
<h3>4 sterilizer&mdash;&mdash;EO injection system</h3>
<p>&nbsp;EO injection system can inject EO gas/ EO + CO2, or N2 gas when using pure EO to sterilize. &nbsp;</p>
<h3>4.1 Vaporizer： structure and material, &nbsp;</h3>
<p>EO vaporizer: Using a pump to transfer the heat to the vaporizer to make the EO change from liquid to steam &nbsp;<br>1. vaporizer liner： stainless steel<br>2、EO coil pipe： stainless steel pipe SUS304<br>3、 Vaporizer housing： stainless steel&nbsp;<br>4、insulating layer： fireproof aluminum silicate fiber blanket&nbsp;<br>5. heating way: main hot water tank supply<br>6. with a temperature sensor to control the vaporizer temperature&nbsp;<br>&nbsp;<br>&nbsp;</p>
<h3>4.2 EO injection device &nbsp;</h3>
<p>4.2.1 &nbsp;If without internal circulation fan: The top of the cabinet has three EO injection holes； The injection mouth is easy to take apart for cleaning; If there&rsquo;s an internal circulation fan, EO injection only needs one. &nbsp;</p>
<table style="border-collapse: collapse; width: 627.77pt; border-width: 0px; border-spacing: 0px; border-style: solid;" border="1" width="837" cellspacing="0" cellpadding="0"><colgroup><col style="width: 249.75pt;" width="333"> <col style="width: 378.00pt;" width="504"> </colgroup>
<tbody>
<tr style="height: 13.50pt;">
<td class="et2" style="height: 81.00pt; width: 249.75pt;" rowspan="6" width="333" height="108"><span class="font0">EO vaporizer: Using a pump to transfer the heat to the vaporizer to make the EO to change from liquid to steam <span style="mso-spacerun: yes;">&nbsp;</span></span></td>
<td class="et3" style="width: 378.00pt;" width="504"><span class="font0">1. vaporizer liner</span><span class="font0">： </span><span class="font0">stainless steel</span></td>
</tr>
<tr style="height: 13.50pt;">
<td class="et3"><span class="font0">2</span><span class="font0">、</span><span class="font0">EO coil pipe</span><span class="font0">： </span><span class="font0">stainless steel pipe SUS304</span></td>
</tr>
<tr style="height: 13.50pt;">
<td class="et3"><span class="font0">3</span><span class="font0">、 Vaporizer</span><span class="font0">&nbsp;housing</span><span class="font0">： </span><span class="font0">stainless steel</span></td>
</tr>
<tr style="height: 13.50pt;">
<td class="et3"><span class="font0">4</span><span class="font0">、</span><span class="font0">insulating layer</span><span class="font0">： </span><span class="font0">fireproof aluminum silicate fiber blanket</span></td>
</tr>
<tr style="height: 13.50pt;">
<td class="et3"><span class="font0">5. heating way: main hot water tank supply</span></td>
</tr>
<tr style="height: 13.50pt;">
<td class="et3"><span class="font0">6.<span style="mso-spacerun: yes;">&nbsp;</span>with a temperature sensor to control the vaporizer temperature</span></td>
</tr>
</tbody>
</table>
<h4>4.2 EO injection device &nbsp;</h4>
<p>4.2.1 &nbsp;If without an internal circulation fan: The top of the cabinet has three EO injection holes； The injection mouth is easy to take apart for cleaning; If there&rsquo;s an internal circulation fan, EO injection only needs one. &nbsp;</p>
<p>4.2.2 Vaporization pump: the hot water in the main water tank is transported to the vaporizer.&nbsp;</p>
<p>4.2.3 The EO injection mouth of the sterilization cabinet is equipped with an independent control temperature sensor; EO temperature is super low, the system will alarm and stop dosing.</p>
<p>4.2.4 The EO input can also be weighed and controlled according to the pressure difference control in the sterilizer.</p>
<p>4.2.5 EO input pipeline: filter, pneumatic ball valve, flow meter, pressure gauge. The pipe is equipped with the removal of the residual EO device (to the exhaust gas treatment system, exhaust gas when the cylinder is replaced)</p>
<h3>5 Sterilizer&mdash;humidifying system &nbsp; &nbsp; &nbsp; &nbsp;</h3>
<p>The humidification system adjusts the humidity in the sterilizer by adding saturated steam.</p>
<p>5.1 The steam generator is configured by the steam generator; automatic water replenishment, automatic heating, and automatic protection.</p>
<p>5.2 Humidifier: filter (5 inches) division of water removal, trap, pneumatic ball valve, needle valve, steam from the side of the cabinet into the humidifier, 1 humidifier hole.&nbsp;</p>
<p>5.3 A humidifying system can start the humidifying process in two ways: humidity sensor and pressure difference method.</p>
<h3>6 Sterilizer&mdash;&mdash;air change system</h3>
<p>Changing air is the air system for injecting filtered air.</p>
<p>6.1 The air change device includes the handball valve, the pneumatic ball valve, the explosion-proof proportional valve (control rate), the precision filtration, and the coarse effect filtration.</p>
<p>6.2 The precision filter is pre-coarse filtering, which can fully prolong the service life of the rear precision filter. The filter precision is 0.3&mu;m, and the 1-core filter is used to shorten the air-changing time to the maximum.</p>
<p>6.3 The fresh air is incorporated into the internal circulation duct and enters the sterilizer</p>
<div class="robots-nocontent sd-block sd-social sd-social-icon sd-sharing">
<div class="sd-content">
<p>&nbsp;</p>
<div class="sharing-hidden">&nbsp;</div>
</div>
</div>

Bocon ETO Sterilizer Machine Mechanical Part Introduces

Publish Time：2023-10-13
