Electrical part
The control operating system of the sterilization cabinet will realize the automatic control of the eto sterilization process, and the operation will be stable and reliable.
1. Hardware of the control system:
1.2. control system： There are three system options.
You can view our control system page to view the details.
Buyers can either BGIB3 or BGD83 as they want. BGIB3 is more popular. BGD83 is normally for buyers, who have limited sterilization workshop space to make a separator control room in the workshop. The computer can be moved outside of the workshop.
2. Control system software description:
Operation system： Windows 7 or Windows 10 operation system，
Control system： EOCS；
2.1 The control system of the sterilizer can set 4 4-level passwords， which authorize the operators, administrators, and maintenance levels respectively. Each user can set the username and password independently;
2.2 The control system of the sterilizer can support more than 100 sterilization recipes;
2.3 The monitoring and management system of the computer will provide on time alarm when the temperature, pressure, humidity, and other parameters change not normally, such as water temperature, ultra-high-temperature sterilization temperature, ultra-low temperature pressure, and ultra-high-pressure sterilization, ultra-low pressure gasifier temperature, humidity, and ultra-low humidity …were recorded in bacteria parameter report clearly and displayed separately;
2.4 Sterilizer supervisor management system, can continuously show, collect, and record daily sterilizing data, which need to be supervised( sterilizing temperature T1, sterilizing temperature T2, sterilizing pressure P1, sterilizing pressure P2, sterilizing humidity RH1, water tank temperature T5, EO temperatureT6, EO vaporizer T7);
2.5 Sterilizer monitoring management system, which can print historical trend maps in the form of free combination, supports the direct conversion of historical trend maps to PDF output.
3. Independent data report management system
3.1 Data exception points can be collected and recorded.
3.2 It can implement process data record mode, and never lose key parameters.
3.3 Automatically generate sterilization batch record.
3.4 Support the setting of different recording time intervals at different stages, save the printing paper, reduce the records of redundant data, and facilitate the auditor's review.
3.5 Batch record summary can be generated automatically, and the qualified situation of sterilization can be determined automatically in advance, which can greatly reduce the labor intensity of data audit personnel of sterilization record, and can reach the level of parameter.
3.6 Supports direct conversion of data format to PDF output.
3.7 Detailed data recording function is supported. The range of record parameters can be selected as : T1、T2、T5、T6、T7、P1、P2、RH1、
3.8 Support process time automatic summary function, running process data automatic summary function, product list entry, and management function.

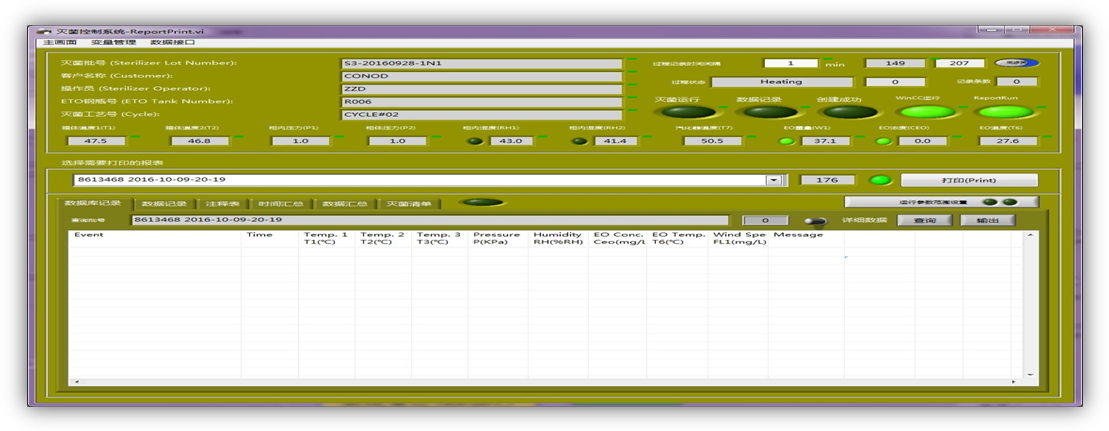

3.9 Support product list entry and management function, data server networking function reference（Fig4、5、6、7、8）
4. Software validation:
The standardized system can provide professional software verification report free, and the non-standard system software verification report will be charged extra.
After the one-site installation, the supplier provides the software confirmation report. The buyer and the supplier confirm the standard version of the software.
5. On-site installation:
The on-site standard specialties installation makes the system more stable.
6. Sterilizer control mode:
Sterilizer control mode: by switching , soft manual and full-Automatic
7. Software warning system
For safety purposes, the system has more than 100 alarms or reminders.
7.1 The alarm system is divided into two types: normal work and abnormal fault alarm.
7.2 The alarm system will record all the working tips and fault alarms of the system
7.3 The alarm system intelligently judges the types of alarms and produces the corresponding text hints, and the normal operation and simple troubleshooting methods can be found in the operation manual.
7.4 Work warning project: high and low water level fault, sensor fault, door seal low pressure, low compressed air, low steam pressure, low vacuum feeding water, low or high vaporizer temperature, low temperature of EO injection, EO injection start, EO injection finish etc. Totally there are about 100 alarms;
7.5 Automatic operation process fault alarm, fault item: Failure of vacuum pump, circulation pump failure, and vaporization pump failure、abnormal temperature of sterilizing room, abnormal hypothermia in sterilizing room, abnormally high temperature of the water tank, abnormally high temperature of vaporizer, abnormal leakage of sterilizer body and abnormally high pressure of cabinet, EO absolute low temperature, bearing abnormal temperature of circulating fan, abnormal speed of circulating fan and so on.
7.6 The control program has a remote interactive function with the user terminal and provides remote technical service.
8. Control software process:
8.1 Ethylene oxide injection amount: the injection amount can be controlled by differential pressure method or weight method according to the technical standard of the demander.
8.2 Sterilization time: automatic control, according to the requirements of the process.
8.3 Sterilization process flow: sterilization process flow is the standard version of the routine process as follows:
Heating - heat preservation-vacuuming- leak detection- humidification-humidification balance (EO exposure)-air cleaning- removing residual- sterilization cycle end (open and unload sterilized products).
9. Power failure protection:
9.1 The power failure protection device can keep the door seal gassing working condition.
9.2 Sterilization software itself has the function of power failure protection. Control power reconfigure UPS, continue to monitor sterilization parameters, and record data during the UPS working period.
