How Long Does Eto Sterilization Last

Publish Time:2023-10-23

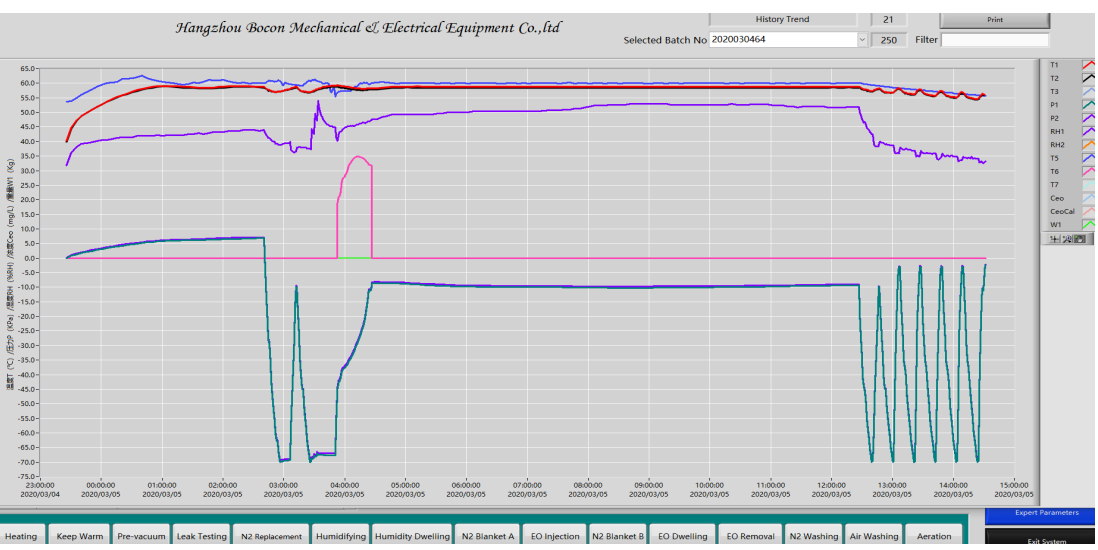

how long does eto sterilization tak.png



The duration of ETO (ethylene oxide) sterilization can vary depending on several factors, including the size and complexity of the items being sterilized, the load size, the specific sterilization parameters being used, the use of the preconditioning room and Aeration room, the gas you use, double channel or single channel.

When you use bocon eto sterilizer, you can Refer to the following table



Sterilization time calculation (N20)

N20 Process:Use the nitrogen gas (100%EO+N2) to get more safety

PC:preconditioning room,
AR:Aeration room



single channel,
no PC and AR

single channel,
have PC and AR

double channel,
no PC and AR

double channel,
With PC and AR



Process

time(Min)

time(Min)

time(Min)

time(Min)

1

Heat

30

10

30

10

2

Keep warm

240

5

300

5

3

Vacuum

18

18

18

18

4

Leak testing

13

13

13

13

5

Nitrogen replacement

30

30

30

30

6

Humidifying

30

30

30

30

7

Nitrogen blanket

2

2

2

2

8

EO injection

30

30

30

30

9

Nitrogen cover

2

2

2

2

10

EO exposure

240

240

300

300

11

EO removal

18

18

18

18

12

Nitrogen wash (1times)

30

30

30

30

13

Air wash

600

60

600

60

14

Aeration

5

5

5

5



Min

1288

493

1408

553



Hour

21.5

8.2

23.5

9.2

Note:all of the time are the experiential data,if you want to get the accurate data ,you must do the PQ validation to get.

























Sterilization time calculation (C10)

C10 Process:Use the mixture gas (30%EO+70%CO2) to save the time

PC:preconditioning room,
AR:Aeration room



single channel,
no PC and AR

single channel,
have PC and AR

double channel,
no PC and AR

double channel,
have PC and AR



Process

time(Min)

time(Min)

time(Min)

time(Min)

1

Heat

30

10

30

10

2

Keep warm

240

5

300

5

3

Vacuum

18

18

18

18

4

Leak testing

13

13

13

13

6

Humidifying

30

30

30

30

8

EO injection

60

60

60

60

10

EO exposure

120

120

180

180

11

EO removal

18

18

18

18

13

Air wash

480

60

480

60

14

Aeration

5

5

5

5



Min

1014

339

1134

399



Hour

16.9

5.7

18.9

6.7

Note:all of the time are the experiential data,if you want to get the accurate data ,you must do the PQ validation to get.
